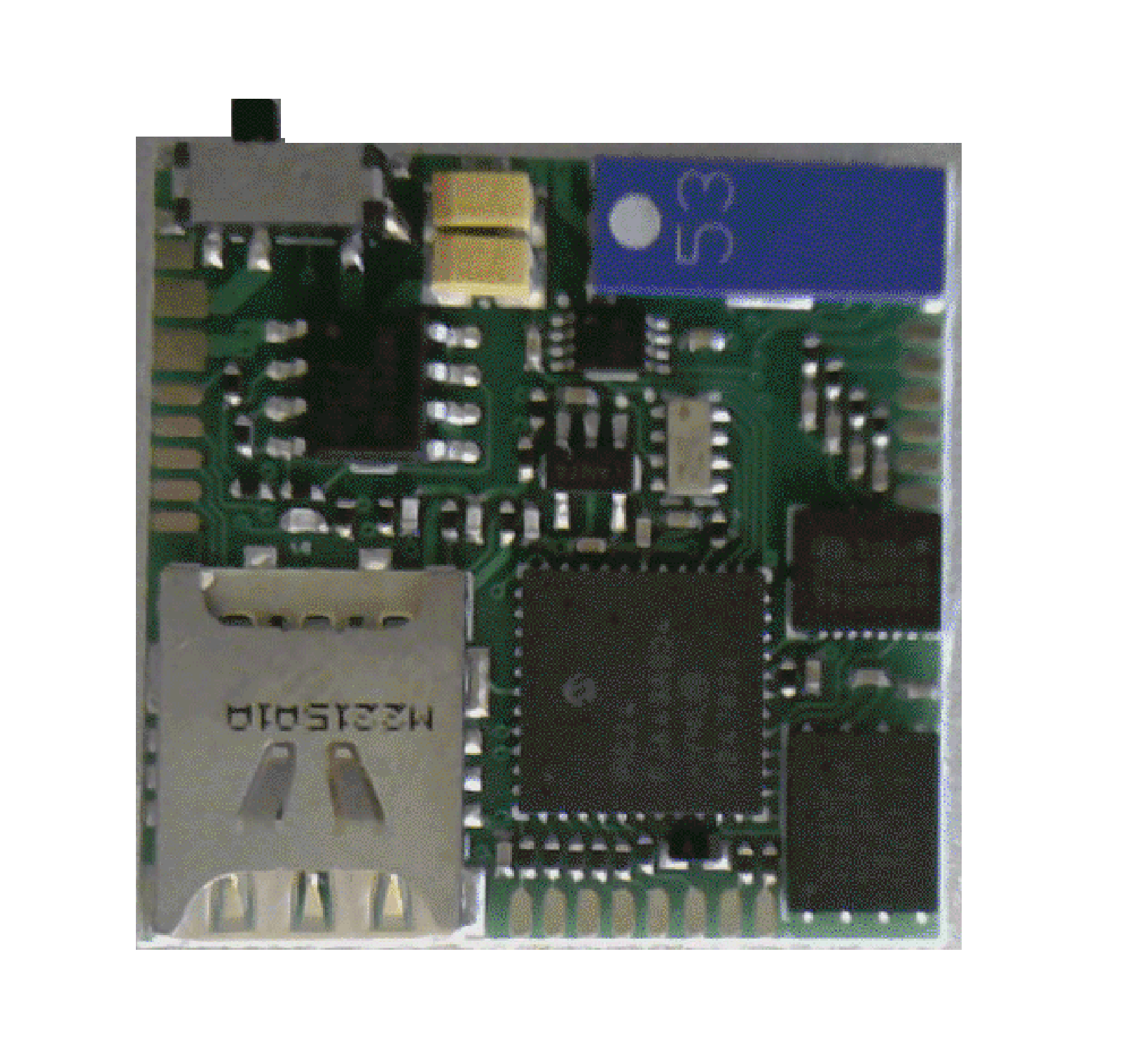

MSR-GSM

MSR-GSN is a small Encrypted GSM Interrupted Magnetic Card Reader with KeyPad capability all in one with the lowest Power Consumption in the world.

Capabilities:

• Receive Data Via SMS
• Data Encryption

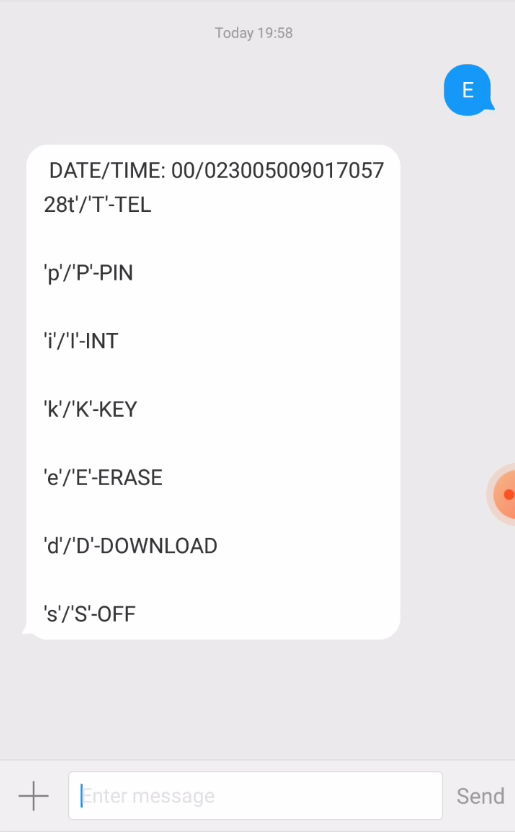

• Able to modify configuration via sms
• Menu protected by password
• Set Filters for data
• Module can be adapted for Region, USA, Europe, Asia, Global
• Set Timing for SMS Transmission (1 Minutes to 10080 Minutes, each day, each week each month etc ….)

Download Decryption Program Click Here Decoder_BT_LAST

Click Here for Video Tutorial

Specifications:

• Carriers Verizon, AT&T
• Certification FCC, PTCRB, GCF, ROHS, REACH
• GNSS Band GPS, GLONASS
• Interface USB2.0, UART, GPIO, I2C, ADC, SIM
• LTE Bands B2, B4, B12, B13
• Network Protocols TCP/IP, UDP, SMS, EMAIL, FTP/HTTP/SSL
• Package Type Surface Mount
• Region North America, South America
• SMS Yes
• TechnologyLTE-M, NB-IoT
• Voice No
• Current Power off: 7uA, PSM: 9uA, Sleep: 1mA, Idle: 11mA
• Downlink Datarate up to 300kbps(LTE CAT-M1), up to 34kbps(NB-IoT)
• Interface Voltage 1.8 to 3 V
• Operating Temperature -40 to 85 Degree C
• Supply Voltage 3 to 4.3 V
• Uplink Datarate up to 375kbps(LTE CAT-M1), up to 66kbps(NB-IoT)

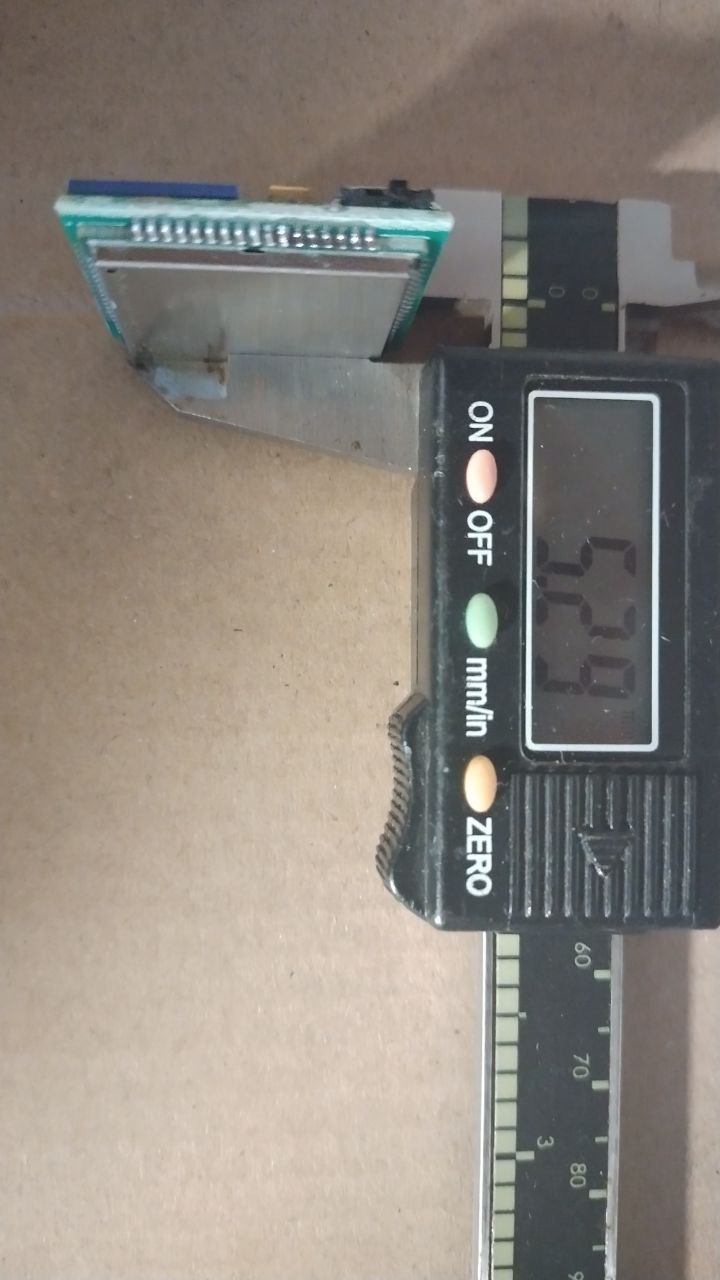

• Dimension 37*26*5

Power Consumption Stand By Mode: 89uA (0.1mA)

Power Consumption during Swipe: 1.7mA-3.5mA

Power Consumption Waiting For Key Stroke: 0.2mA

Power Consumption During Key Stroke: 0.2-0.6mA

Power Consumption During Network connection: 96mA-133mA

Auto Erase After Data transmission

Data encryption password by customer

Storage Capacity: 8000 Records

Encryption: AES Dynamic Encryption

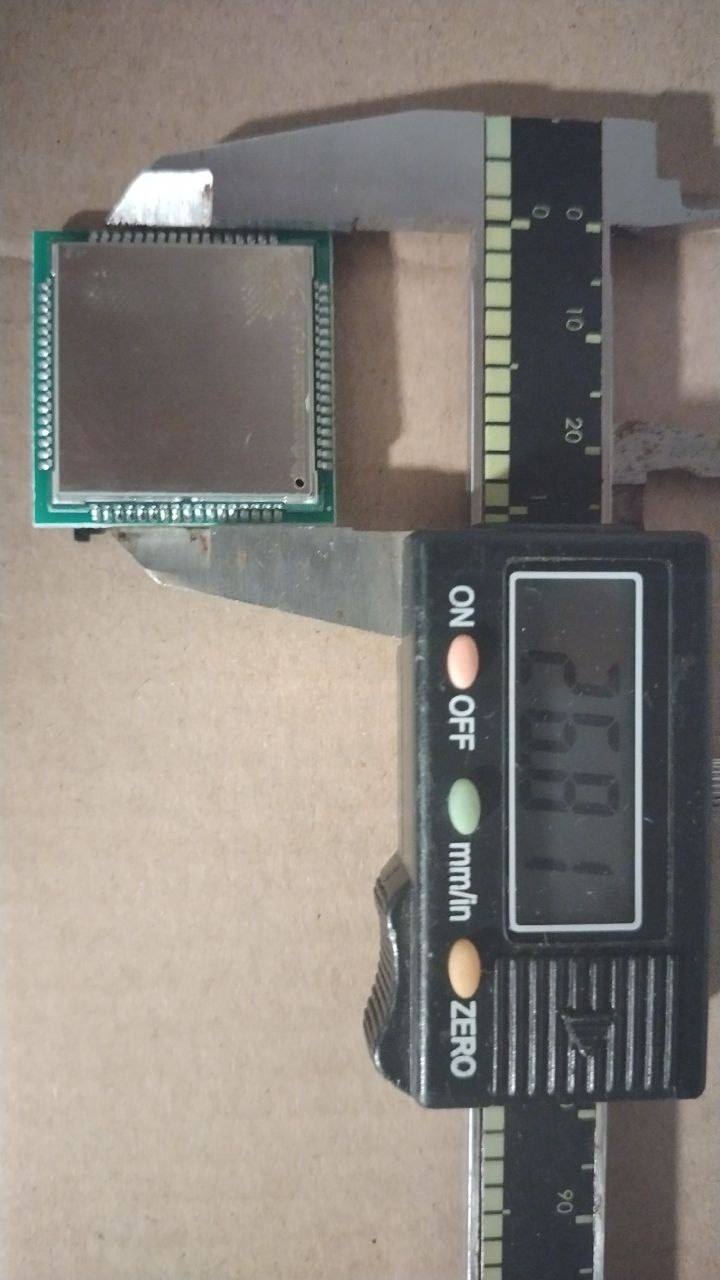

Size: 37*24*5mm

Power Consumption Example:

300mA battery= 300 000uA

300000uH/1,4uA=214285 Hours/24 hours= 8928 Days Stand By Mode

300000uH/590uh=508 Hours/24 hours=21 Days if Device Running all the time.

Real Time Example: Average Standby 90% day, Running mode 10%, SMS Sent once per week

about 90 days in one Full charge with 300mAh Battery.
