EVO-BTM

MSR Bluetooth WITH BLUETOOTH ALWAYS ON

EVO-BTM is a small Encrypted Wireless Bluetooth Interrupted Magnetic Card Reader with KeyPad capability all in one with the lowest Power Consumption in the world with Bluetooth always in SLEEP MODE and visible without any need to reset device to activate Bluetooth power consumption is as low as 0.01-0.02 mAh should work for about 60-90 days on a full 200mAh Battery.

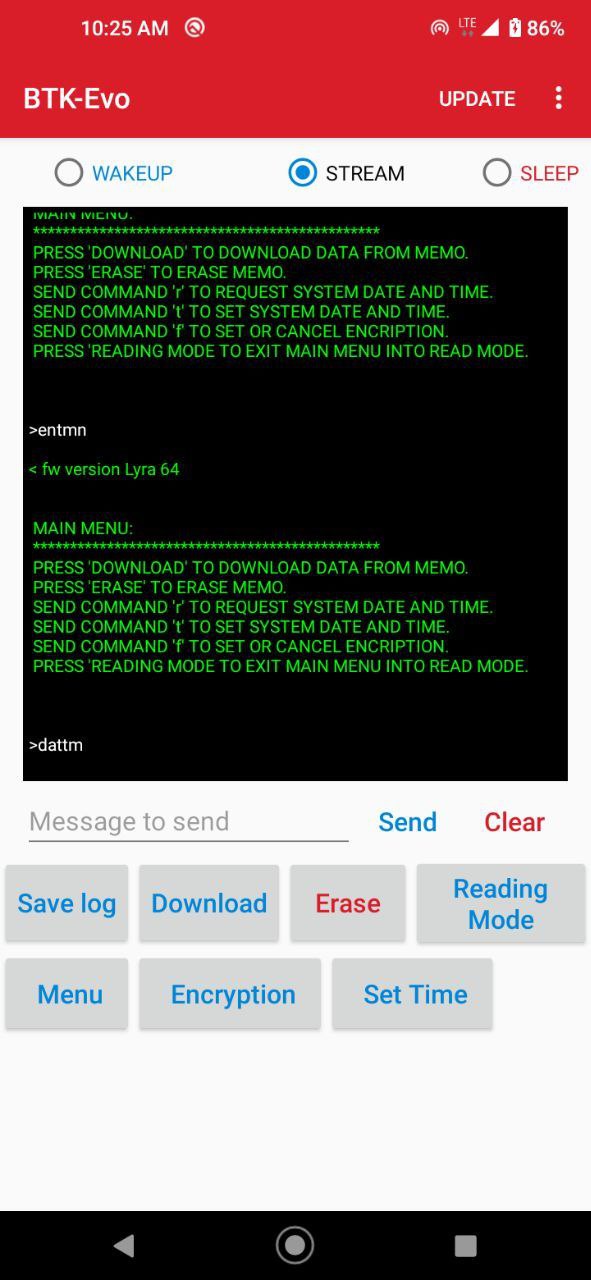

Download Application X-TERM.ZIP click here

Download Application X-TERM.apk click here

Click Here For Tutorial

Specifications:

Power Consumption DEEP SLEEP Stand By Mode: 89-200uA (0.01-0.02mA)

Power Consumption during Swipe: 1.7mA-3.5mA

Power Consumption Waiting For Key Stroke: 0.2mA

Power Consumption During Key Stroke: 0.2-0.6mA

Power Consumption Bluetooth Connected: 18mA-22mA

Fast Erase Mode: 5 Sec Full ERASE

Slow Erase Mode 80 sec

Bluetooth Rename

BlueTooth Password Selection

Data encryption password by customer

Extra Fast Download: 25 Records per Second

Storage Capacity: 32000 Records

Encryption: AES Dynamic Encryption

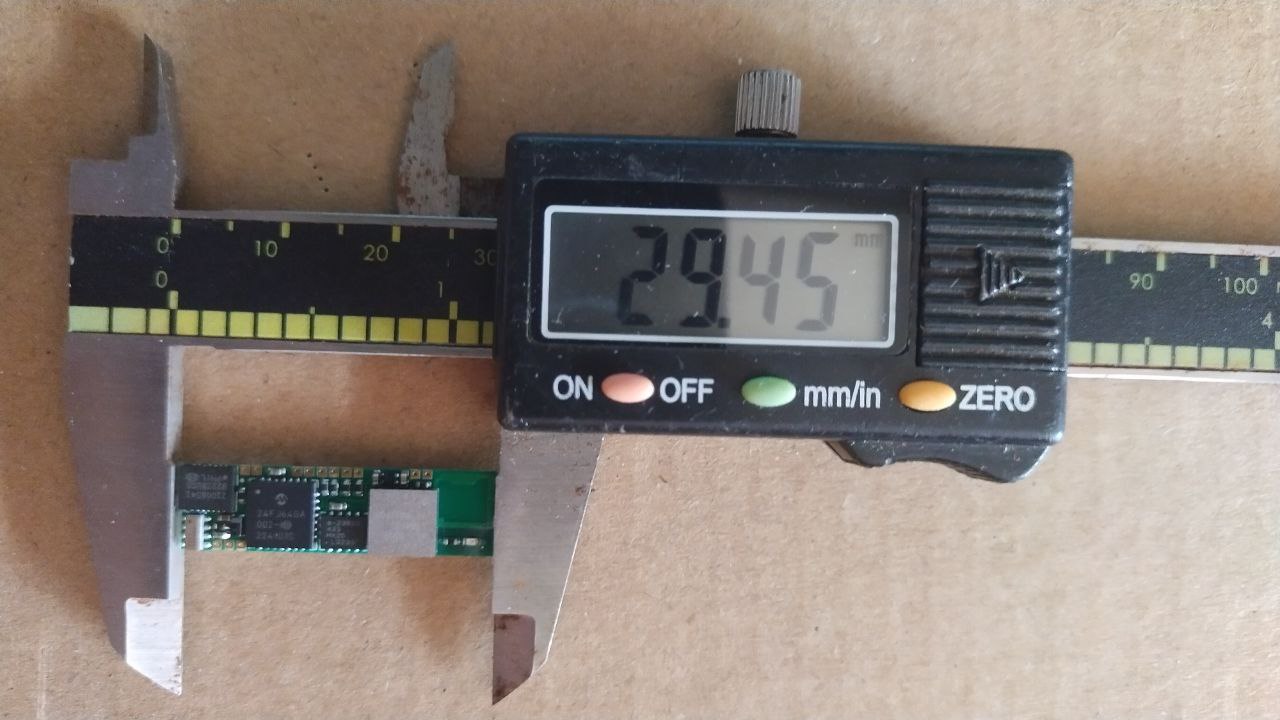

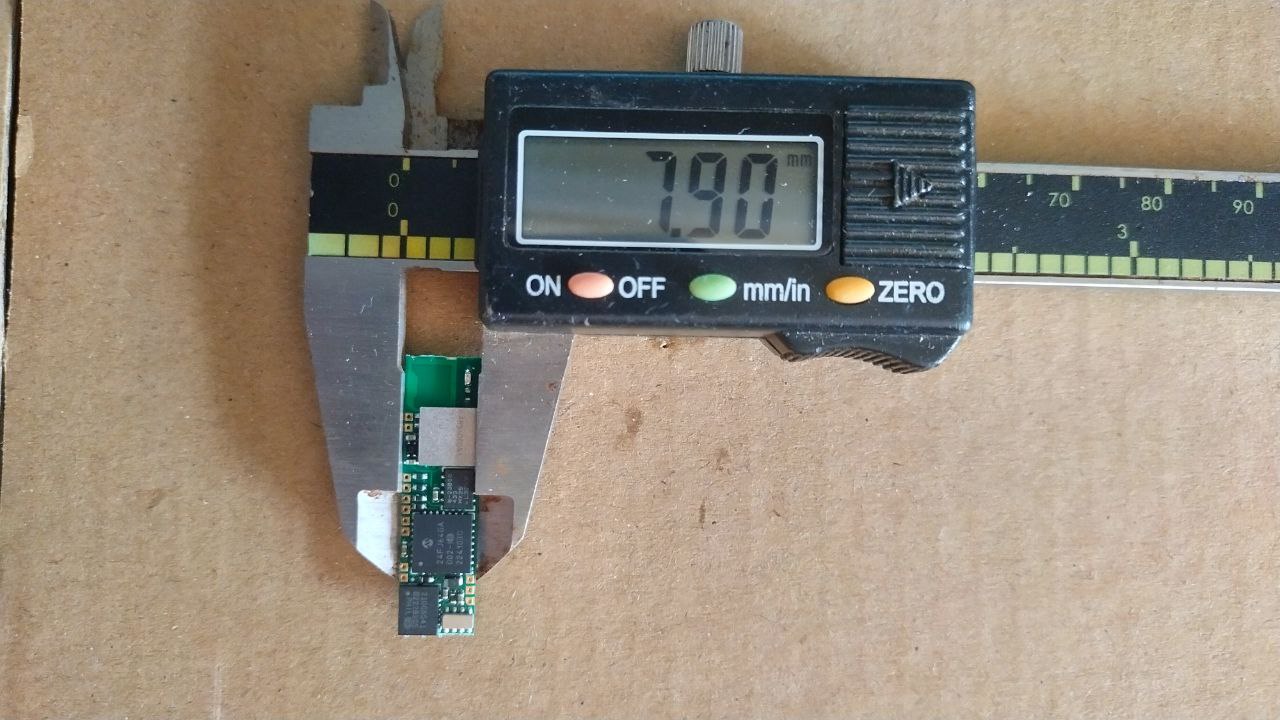

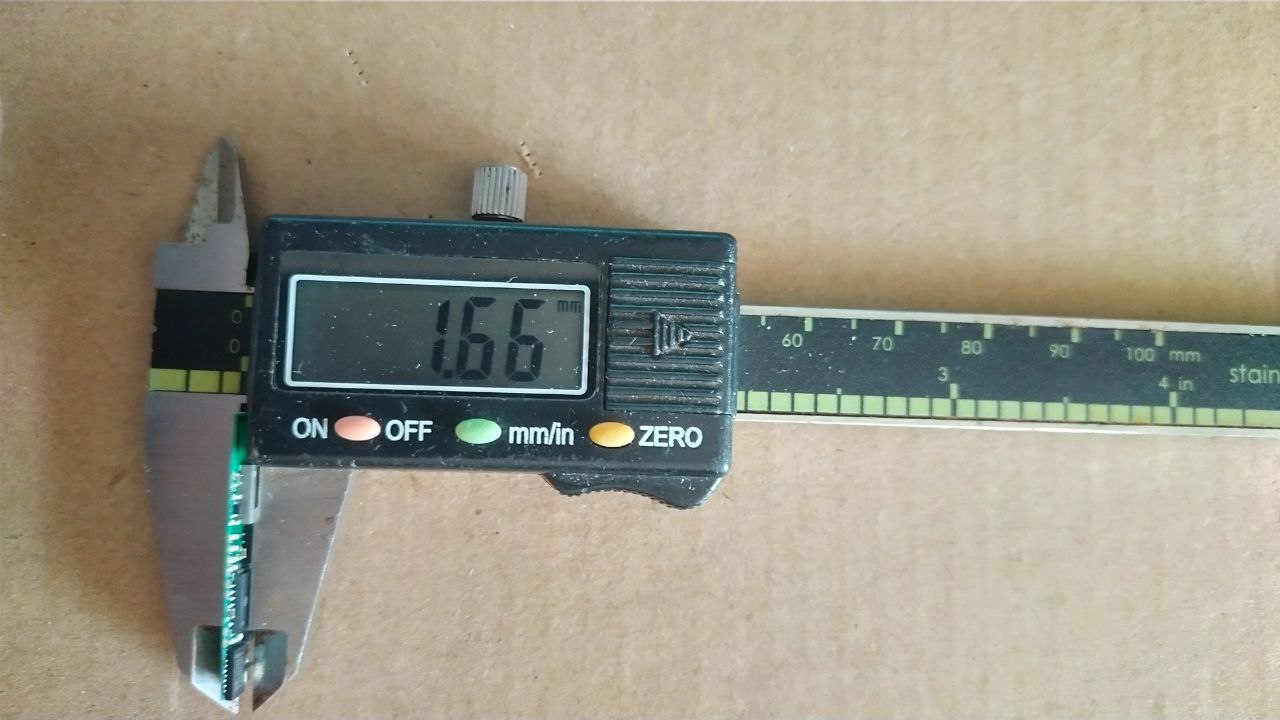

Size: 29*8*1.6mm
