Name: ASR008s
SKU: 266
Price: 350 USD
Availability: InStock

$350

Encrypted Miniature Analogu Sound recorder “ASR-008s” With Switch Inegrated

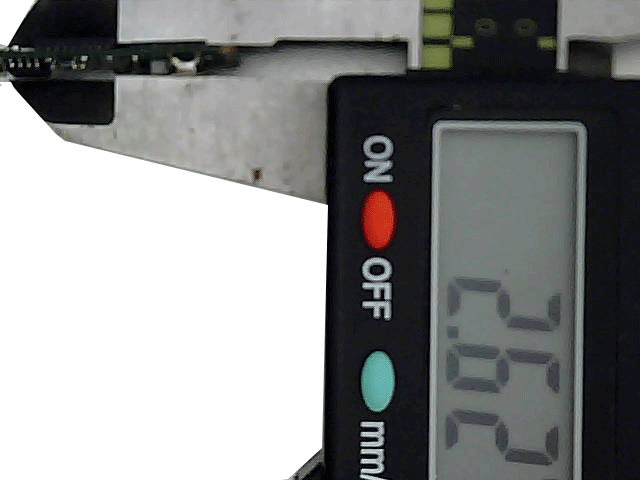

Size – 17* 6 * 2mm

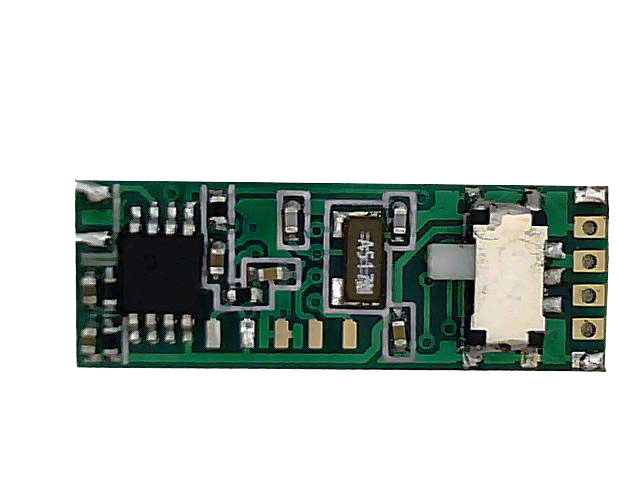

Integrated Switch on PCB

Series ASR Tiny Analogu Sound Recorder
Hardware Encrypted
records sound directly into Flash 32MB

Easy Direct USB Connection

Category: Audio Sound Recorder

Description
Additional information
Reviews (0)

Mini Analgu Sound Recorder “ASR-008s” Mono Channel With Switch Integrated to PCB

Download ASR008s Sound Sample Click Here

The particularity of Analogu Sound Recorder is that no matter the recording condition, the sound will be recorded into the memory as it is in reality, no modification of the sound is made, no digital treatement no limitations regarding the speed.1. Brief description and specifications.

ASR-008s is designed for high-quality audio recording on a Flash Integrated memory,, data is saved as an Encrypted standard WAV-files. Has a miniature size and modular design that allows you to use different power supplies capacities allowing the user to choose the performance of the ASR-008 depending on the power source mAh. Giving the user a huge range of customization options and recording conditions.

Specifications:

USB Plug&Play connection

Size – 17 * 6 * 2mm

Flash Memory 32MB
The format of the file system – Flash

Encrypted Sound File
Sound Sampling 10000Hz,

Bit analog File .
Voice activation selection (VOX)

Current consumption When Standby Mode – 0 mA, the recorder is turned off Automatically as User selection between 5-200 sec

The average current consumption in the recording mode – 18-26 mA,..

Current consumption in standby mode, start recording at Sound activation above a certain Sound Wav – 1.2-2 mA.

Current consumption in standby mode, recording pauses VOX – 2-2,5 mA.
Current consumption LED when Device is turn on
Power Source from 2.6-3.7V. other power Ranges than that will damage device.

2. Connecting the microphone.

Possible to use any highly sensitive electro magnetic microphones with a supply voltage 2.7 – 3.7 volts. Of course, the quality and brand of microphone will significantly determine the sensitivity and the quality of the audio recording.

Please refere to connection schematics:

cardreadertech.com asr008s Connection diagram

Note:
Connect the charger with reverse polarity will result damage the Audio Recorders. Be careful when connecting!Charging the battery:
You can charge the battery Via USB port of the ASR-008 with the original 3.7 USB Cable.

3. Setup and operation of the recorder.

– ASR-008 is connected via USB, install drivers before plugging in the USB cable, than start the software as administrator mode ini Windows 7 or normal mode if Administrator is already selected, select your Com port than connect the ASR to the USB cable and press “Connect”

– The ASR-008 can be configured as to start recording at a certain Histeresys Value between 2-50 Default is 5 and should not be modified.

– ASR-008 can stop recoding if no sound is recorded after value between 5-200 sec Default is 7s (seconds).

4. Sound Encryption

– Device ID has a Encryption key related to his ID, Encryption corresponds to each Computer that the Device is connected, working on another computer would require decryption procedure to be redone on this particular machine.

– Encrypted files can be decrypted without the ASR-008 beeing physically attached to the Computer.

– Password is a mixed 7 digits default is 0000000, the first 3 digits of the password are shown as device ID, the full password should be written in order to decrypt the .wav file.

5. Dowloading Data

– When Device is connected and “Connected” is Green you can simply press on “Download Sample”, a folder is going to be created in the same folder that you have install the Terminal.exe Software.9. Legal aspects.

Voice recorder designed for use in the home and is not intended to be used as a special technical device. Contains no elements of camouflage, has a lighted work and controls. For any use or application of the product for illegal purposes manufacturer is not responsible.

Package Conent:
